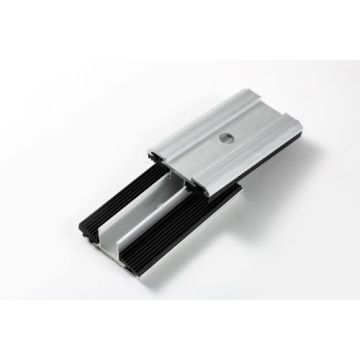

Solar photovoltaic pressure block

High-Strength Crystalline Silicon Solar Panel Pressing Block for Photovoltaic Mounting Systems

Enhance the durability and performance of your Solar Energy installations with our premium crystalline silicon solar panel pressing block, a critical component in modern photovoltaic mounting solutions. Designed specifically for fixed-rack systems, this accessory ensures secure panel anchoring while optimizing structural integrity under extreme weather conditions such as high wind loads and thermal expansion. Whether you're deploying utility-scale solar farms or residential rooftop arrays, these pressure blocks offer reliable mechanical support that meets international engineering standards.

Our product line includes two primary variants: medium voltage blocks for central module fixation and edge pressing blocks for perimeter stability—both engineered to match standard panel dimensions (e.g., 60-cell, 72-cell modules). Each unit is precision-manufactured from 6000-series aluminum alloy, known for its excellent corrosion resistance, lightweight properties, and superior strength-to-weight ratio. The surface undergoes a durable powder coat finish, enhancing UV resistance and long-term aesthetic appeal without compromising functionality.

Key features include seamless integration with dedicated photovoltaic bolts, allowing for quick assembly and disassembly during maintenance or system reconfiguration. Unlike traditional bolt-only methods, which risk misalignment or over-tightening, our pressing blocks distribute clamping force evenly across the frame, minimizing stress points and preventing micro-cracking in solar cells. This design also supports modular construction practices, enabling faster installation timelines and consistent quality control across large-scale projects.

Engineered for compliance with IEC 61215 and ASCE 7-22 load requirements, these components are ideal for regions prone to seismic activity or strong gusts. By incorporating proper pressure block selection based on site-specific wind speed data and panel weight, installers can confidently meet local building codes and achieve optimal performance metrics—including uplift resistance, shear strength, and deflection limits. Custom extrusion services are available upon request, allowing clients to tailor profiles according to unique architectural layouts or project specifications.

Common applications span commercial rooftops, ground-mounted arrays, agrivoltaic systems, and carport structures where robustness and ease of deployment are paramount. Installers report reduced labor hours due to intuitive fitting mechanisms and fewer field adjustments, making this solution especially valuable for contractors managing multiple sites simultaneously.

Users consistently praise the reliability of these pressing blocks in harsh environments—from coastal installations exposed to salt spray to arid zones with frequent temperature swings. One installer noted, “We’ve seen zero failures after three years in desert conditions—this isn’t just hardware; it’s peace of mind.” Another mentioned, “The ability to adjust panels without damaging the frame has saved us countless hours during commissioning.”

Q: Are these pressing blocks compatible with all types of crystalline silicon panels? A: Yes—they are designed to fit most standard rectangular configurations used in monocrystalline and polycrystalline PV modules, provided the frame thickness aligns with our specified range (typically 30–40mm).

Q: Can they be reused if panels need to be relocated? A: Absolutely. Their non-permanent attachment method allows for repeated use without degradation in clamping performance, reducing material waste and labor costs over time.

Q: How do I determine the right model for my project? A: Consult our technical guide or provide panel dimensions and expected wind zone class—we’ll recommend the appropriate pressing block type and quantity for your specific application.
